UA1665.040

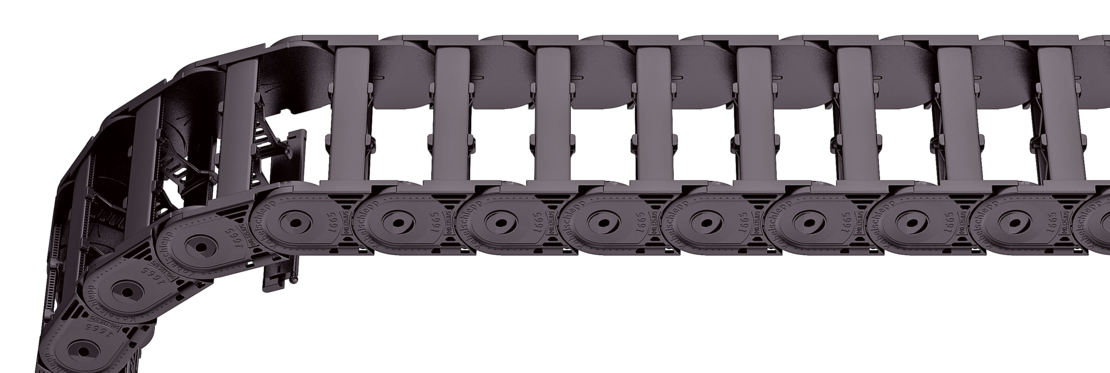

Stay variant 040 – with inside opening and detachable crossbars


Properties

  • Weight-optimised plastic frame with particularly high torsional rigidity.
  • Swivable and detachable left or right in any ­position.
  • Inside: openable and detachable.
test
Stay arrangement on every chain link

Stay arrangement on each chain link (VS: fully-stayed)

Inner width
Bi 50 – 250 mm

Dimensions

Dimensions
Important information

The maximum cable diameter strongly depends on the bending radius and the desired cable type.
Please contact us.

Important information

Design 040 is not suitable for gliding arrangements.

Calculating the cable carrier length
Cable carrier length LK: LK ≈ LS/2 + LB
Cable carrier length Lk rounded to pitch t
t
[mm]
hi
[mm]
hG
[mm]
Bk
[mm]
qk
[kg/m]
66.54460Bi + 221.67 – 2.70
Bi
[mm]
5075100125150175200225250
KR
[mm]
75100120140200250300
Order example
Order code

UA1665

040

125

140

2660

VS

Our technical support can provide help for gliding arrangements: technik@kabelschlepp.de

Inner distribution

Divider systems

The divider system is mounted on every 2nd chain link as a standard. As a standard, dividers or the complete divider system (dividers with height separations) are movable in the cross section (version A).

For applications with lateral acceleration and lying on the side, divider with arresting cams are available.
The locking cams click into place in the locking grids in the crossbars (version B).

Divider system TS0

without height separation
Vers.
aT min
[mm]
ax min
[mm]
ac min
[mm]
ax grid
[mm]
nT min
A5107
B51072.5

Number of dividers for design 020 depending on Bi
Version B: not for design 020

Divider system TS0

Divider system TS1

with continuous height separation*
Vers.
aT min
[mm]
aT max
[mm]
ax min
[mm]
ac min
[mm]
ax grid
[mm]
nT min
A5201072
B5201072.52

* not for design 020

Divider system TS1

Divider system TS3

with height separation consisting of plastic section subdivisions
Vers.
aT min
[mm]
ax min
[mm]
ac min
[mm]
nT min
A416/40*82

* for aluminum partitions

The dividers are fixed with the partitions. The entire divider system can be moved in the cross section.

Divider system TS3
Divider system TS3

Aluminum partitions in 1 mm width sections with ax > 42 mm are also available.

ax (center distance of dividers) [mm]
ac (nominal width of inner chamber) [mm]
16
8
18
10
23
15
28
20
32
24
33
25
38
30
43
35
48
40
58
50
64
56
68
60
78
70
80
72
88
80
96
88
112
104
128
120
144
136
160
152
176
168
192
184
208
200

When using partitions with ax> 112 mm, we recommend an additional central support with a twin divider. The height separations VD4 and VD5 are not possible when using twin dividers.

Order example
Order code

TS3

A

2

K1

K5

34

38

VR1

VR3

Please state the designation of the divider system (TS0, TS1,...), version and number of dividers per cross section [nT ]. In addition, please also enter the chambers [K] from left to right, as well as the assembly distances [aT/ax] (as seen from the driver).

If using divider systems with height separation (TS1 – TS3), please also state the positions [e.g. VD23] viewed from the left driver belt. You are welcome to add a sketch to your order.

End connectors

UA1665 End Connector UMB
UA1665 End Connector UMB
Important information

Recommended tightening torque:
5 Nm for screws M5 - 8.8

Bi
[mm]
nz
50
2 x 3
75
2 x 5
100
2 x 7
125
2 x 9
150
2 x 11
175
2 x 13
UA1665 End Connector UMB
UA1665 End Connector UMB
Connection point

F – fixed point
M – driver

Connection type

– universal mounting bracket

Order example
Order code

UMB

F

U

UMB

M

U

End connector

UMB

UMB

Connection point

F

M

Connection type

U

U

Important information

We recommend the use of strain reliefs at the driver and fixed point.

UA1665 End Connector
UA1665 End Connector
Important information

Recommended tightening torque: 15 Nm for screws M8 - 8.8

Bi
[mm]
nz
50
2 x 4
75
2 x 6
100
2 x 8
125
2 x 10
150
2 x 12
175
2 x 14
200
2 x 16
225
2 x 18
250
2 x 20
UA1665 End Connector
UA1665 End Connector
Connection point

F – fixed point
M – driver

Connection type

A – threaded joint outside (standard)
I – threaded joint inside
H – threaded joint, rotated 90° to the outside
K – threaded joint, rotated 90° to the inside

Order example
Order code

End connector

F

A

End connector

M

A

End connector

End connector

End connector

Connection point

F

M

Connection type

A

A
