KC0900 LG

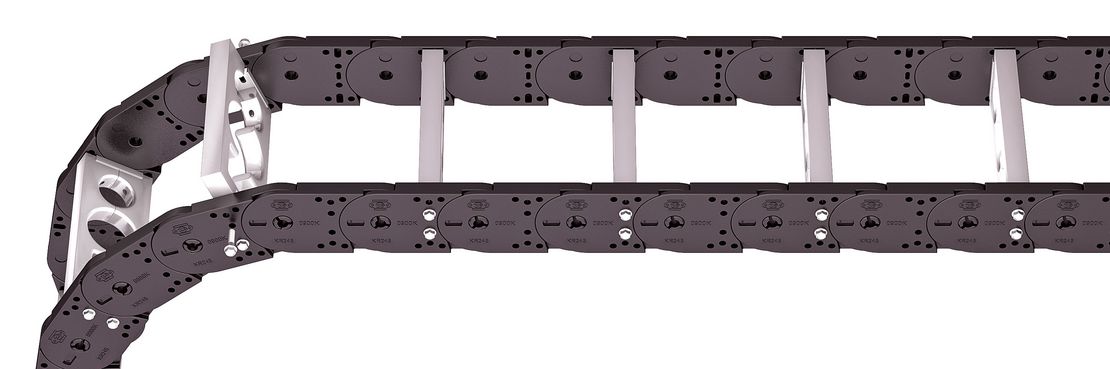

Aluminum stay LG Hole stay, split version

KC0900 Aluminium stay LG - Hole stay, split version

Properties

  • Optimum cable routing in the neutral bending line.
    Split version for easy cable routing. Stays also available unsplit.
  • Available customized in 1 mm width sections.
  • Outside/inside: Screw-fixing easy to release.
test
Stay arrangement on every 2<sup>nd</sup> chain link

Stay arrangement on every 2nd chain link, standard (HS: half-stayed)

Stay arrangement on every chain link

Stay arrangement on each chain link (VS: fully-stayed)

Inner width (B<sub>i</sub>) in 1 mm increments
Bi 100 – 700 mm in 1 mm width sections

Dimensions

Dimensions
Important information

The maximum cable diameter strongly depends on the bending radius and the desired cable type. Please contact us.

Important information

The outer width of the cable carrier corresponds to dimension BEF for stay variant LG.

Calculating the cable carrier length
Cable carrier length LK: LK ≈ LS/2 + LB
Cable carrier length Lk rounded to pitch t
Calculating the stay width
Stay width BSt: ∑D + ∑c + 2 a0
t
[mm]
Dmax
[mm]
Dmin
[mm]
hG
[mm]
Bi
[mm]
BSt
[mm] *
Bk
[mm]
BEF
[mm]
cmin
[mm]
a0 min
[mm]
qk 50 % **
[kg/m]
90501078.5100 – 70098 – 698BSt + 33BSt + 454114.79 – 9.83
* in 1 mm width sections ** Hole ratio of the hole stay approx. 50 %
KR
[mm]
130150190245300385
Order example
Order code

KC0900

400

LG

150

1890

HS

Our technical support can provide help for gliding arrangements: postmaster@metool.com

End connectors

Order example
Order code

UMB

F

U

UMB

M

U

End connector

UMB

UMB

Connection point

F

M

Connection type

U

U

Important information

We recommend the use of strain reliefs at the driver and fixed point.
