Q080 RS

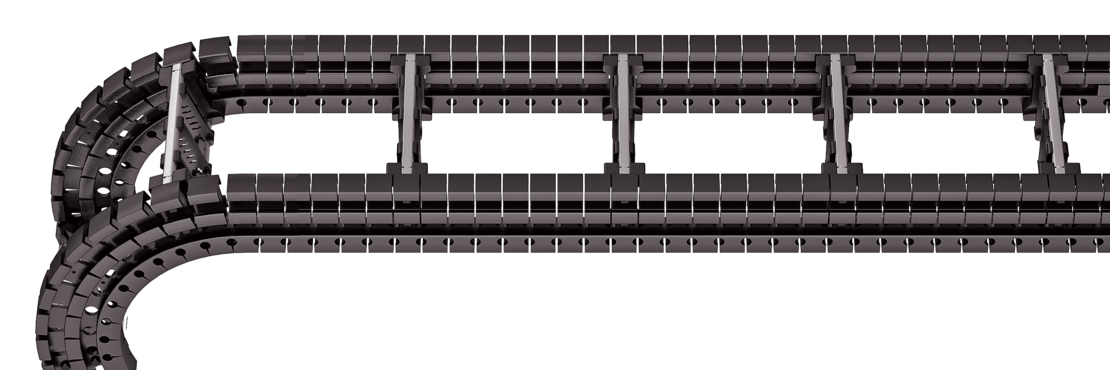

Aluminum stay RS – frame stay narrow


Vlastnosti

  • Extremely quick to open and close
  • Aluminum profile bars for light to medium loads. Assembly without screws.
  • Available customized in 1 mm sections.
  • Outside/inside: release by rotating 90°.
test
Deliace priečky v každom druhom článku

Stays on every 8th section, standard (HS: half-stayed)

Deliace priečky v každom článku

Stays on every 4th section (VS: fully-stayed)

Svetlá šírka (B<sub>i</sub>) v 1 mm šírka mriežky
Bi von 50 – 600 mm im 1 mm mriežka

Rozmery

Rozmery
Dôležité informácie

The maximum cable diameter strongly depends on the bending radius and the desired cable type. Please contact us.

Calculating the cable carrier length
Cable carrier length LK: LK ≈ LS/2 + LB
Cable carrier length Lk rounded to pitch t
Number of glide shoes: Pitch per cable carrier length/4 x 2 -2
t
[mm]
hi
[mm]
hG
[mm]
hG'
[mm]
Bi
[mm] *
Bk
[mm]
BEF
[mm]
qk
[kg/m]
2558808850 – 600Bi + 72Bi + 79,51,90 – 2,25
* v m šírky
KR
[mm]
170200250320420500
Príklad objednania
Objednávací kľúč

Q080

400

RS

250

1600

HS

Pri posuvnom prevedení využite našu technickú podporu: info@kabelschlepp.sk

Vnútorné rozdelenie

Systémy oddeľovacích mriežok

The divider system is mounted on each crossbar as a standard – on every 8th section for stay mounting (HS).
As a standard, dividers or the complete divider system (dividers with height separations) are movable in the cross section (Version A).

For applications with lateral acceleration and rotated by 90°, the dividers can be attached by simply clipping on a socket (available as an accessory).
This socket additionally acts as a spacer between the dividers and is available in a 1 mm grid between 3 – 50 mm, as well as 16.5 and 21.5 mm (Version B).

Divider system TS0

without height separation
Verzia
aT min
[mm]
ax min
[mm]
ac min
[mm]
nT min
A1114102

The dividers can be moved in the cross section.

Divider system TS0

Divider system TS1

with continuous height separation
Verzia
aT min
[mm]
aT max
[mm]
ax min
[mm]
ac min
[mm]
nT min
A112514102

The dividers can be moved in the cross section.

Divider system TS1

Divider system TS2

with partial height separation
Verzia
aT min
[mm]
ax min
[mm]
ac min
[mm]
nT min
A1123192

With grid distribution (1 mm grid). The dividers are attached by the height separation, the grid can be moved in the cross section.

Sliding dividers are optionally available (thickness of divider = 4 mm).

Divider system TS2
Dôležité informácie

Please note that the real dimensions may deviate slightly from the values indicated here.

Divider system TS3

with height separation consisting of plastic partitions

As a standard, the divider version A is used for vertical partitioning within the cable carrier. The complete divider system can be moved within the cross section.

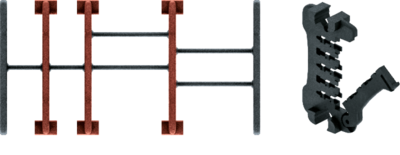

Divider version A

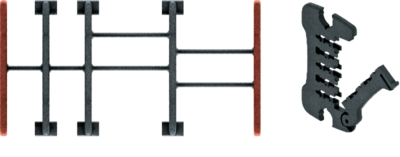

End divider

Verzia
aT min
[mm]
ax min
[mm]
ac min
[mm]
nT min
A10,5/6,5*14102

* for End divider

The dividers are fixed by the partitions, the complete divider system is movable in the cross section.

Divider system TS3
Divider system TS3
ax (vzdialenosť stredov deliacich priečok) [mm]
ac (užitočná šírka vnútornej komory) [mm]
16
8
18
10
23
15
28
20
32
24
33
25
38
30
43
35
48
40
58
50
64
56
68
60
78
70
80
72
88
80
96
88
112
104
128
120
144
136
160
152
176
168
192
184
208
200

When using partitions with ax > 49 mm we recommended an additional preferential central support.

Príklad objednania
Objednávací kľúč

TS3

A

3

K1

K4

34

38

VR1

VR3

Please state the designation of the divider system (TS0, TS1,...), version and number of dividers per cross section [nT ]. In addition, please also enter the chambers [K] from left to right, as well as the assembly distances [aT/ax] (as seen from the driver).

If using divider systems with height separation (TS1 – TS3), please also state the positions [e.g. VD23] viewed from the left driver belt. You are welcome to add a sketch to your order.

Pripojovacie prvky

Príklad objednania
Objednávací kľúč

UMB

F

U

UMB

M

U

pripojenies­prvok

UMB

UMB

pripojenie­bod

F

M

Spôsob pripojenia

U

U

Dôležité informácie

We recommend the use of strain reliefs at the driver and fixed point.
